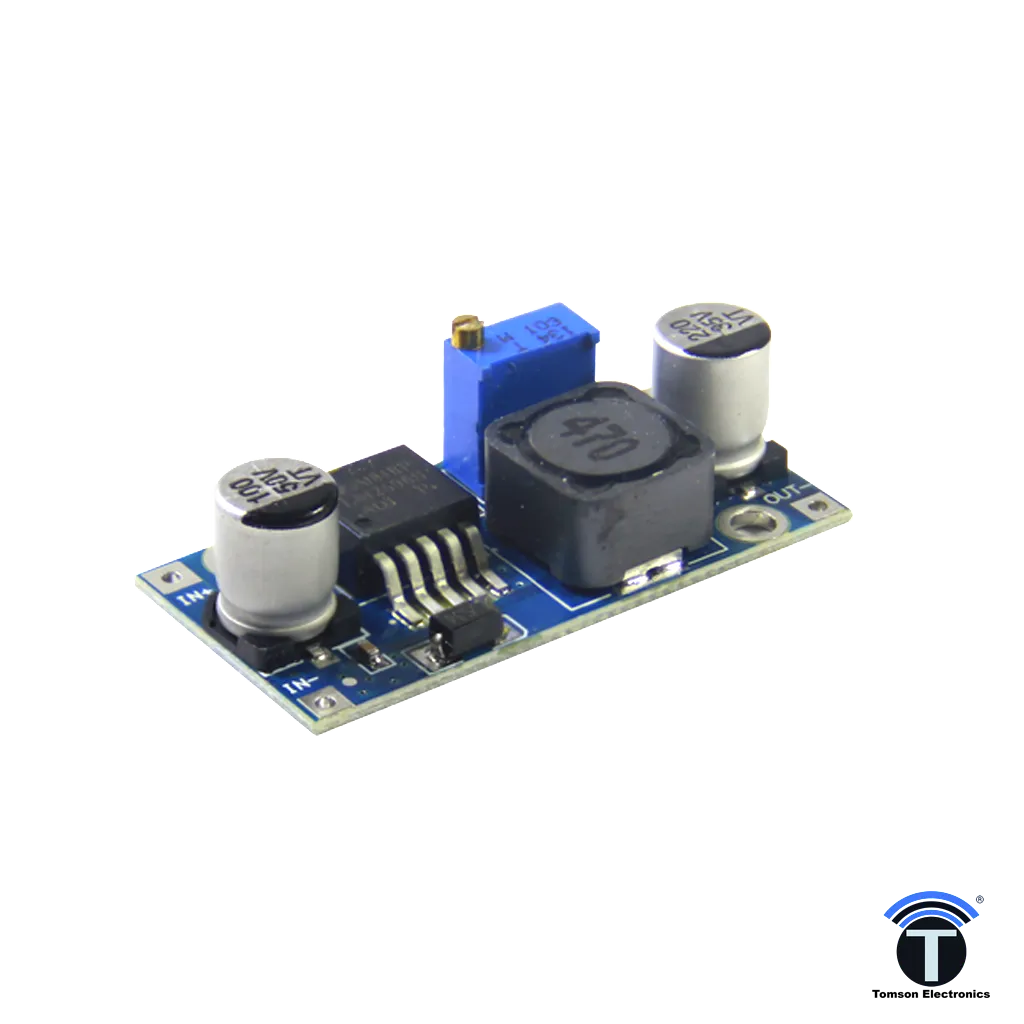

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM 2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators


FEATURES

Input Voltage - 3.2V - 40V DC

Output Voltage - 1.25V - 35V DC

Size - 43mm x 20mm x 15mm

Output Current - 2A, Max 3A (Additional Heat Sink is required)
